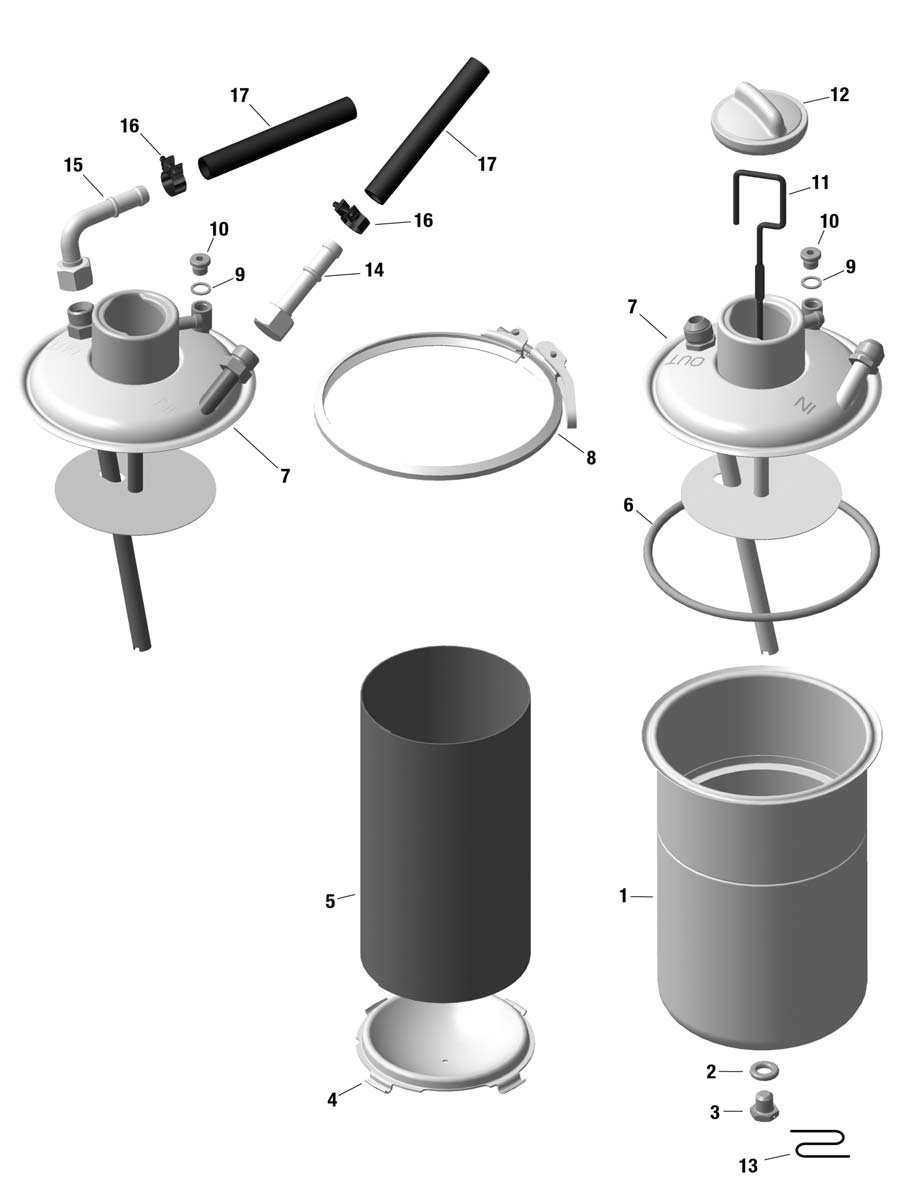

fig. 79-20-00-1
OIL TANK For ROTAX 912IS
Click on Number to order Part
| Fig. | Part Number | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|
| 1-12 | 656865 | Oil Tank Assy. Metric | 911.88 | Add to Cart |
| 1 | 656865 | Oil Tank Assy. Metric | 911.88 | Add to Cart |
| 2 | 250010 | Gasket Ring C 12x18 | 0.44 | Add to Cart |
| 3 | 241408 | Hex. Screw M12x12 | 47.11 | Add to Cart |
| 4 | 656861 | Partition 2 | 44 | Add to Cart |
| 5 | 956204 | Baffle Insert | 60.48 | Add to Cart |
| 6 | 850491 | O-ring 145x6 | 18.26 | Add to Cart |
| 8 | 951817 | Profile Clamp 163 | 104.4 | Add to Cart |
| 9 | 230150 | Gasket Ring 10x14 A Din 7603 | 0.18 | Add to Cart |
| 10 | 641733 | Plug Screw M10x1 | 11.4 | Add to Cart |
| 11 | 956151 | Oil Dipstick "new-03" | 9.96 | Add to Cart |
| 12 | 974647 | Oil Tank Cover, Without Venting | 24.24 | Add to Cart |
| 13 | 297555 | Please Pick Up Locally | 185.68 | Add to Cart |
| 14 | 956610 | Hose Nipple With Union Nut | 155.9 | Add to Cart |
| 15 | 956581 | 956 581 Use 956 580 | 77.3 | Add to Cart |
| 16 | 853515 | Clamp 16/9 | 2.87 | Add to Cart |
| 17 | 956394 | Oil Line Per Meter 12x19 | 121.08 | Add to Cart |
