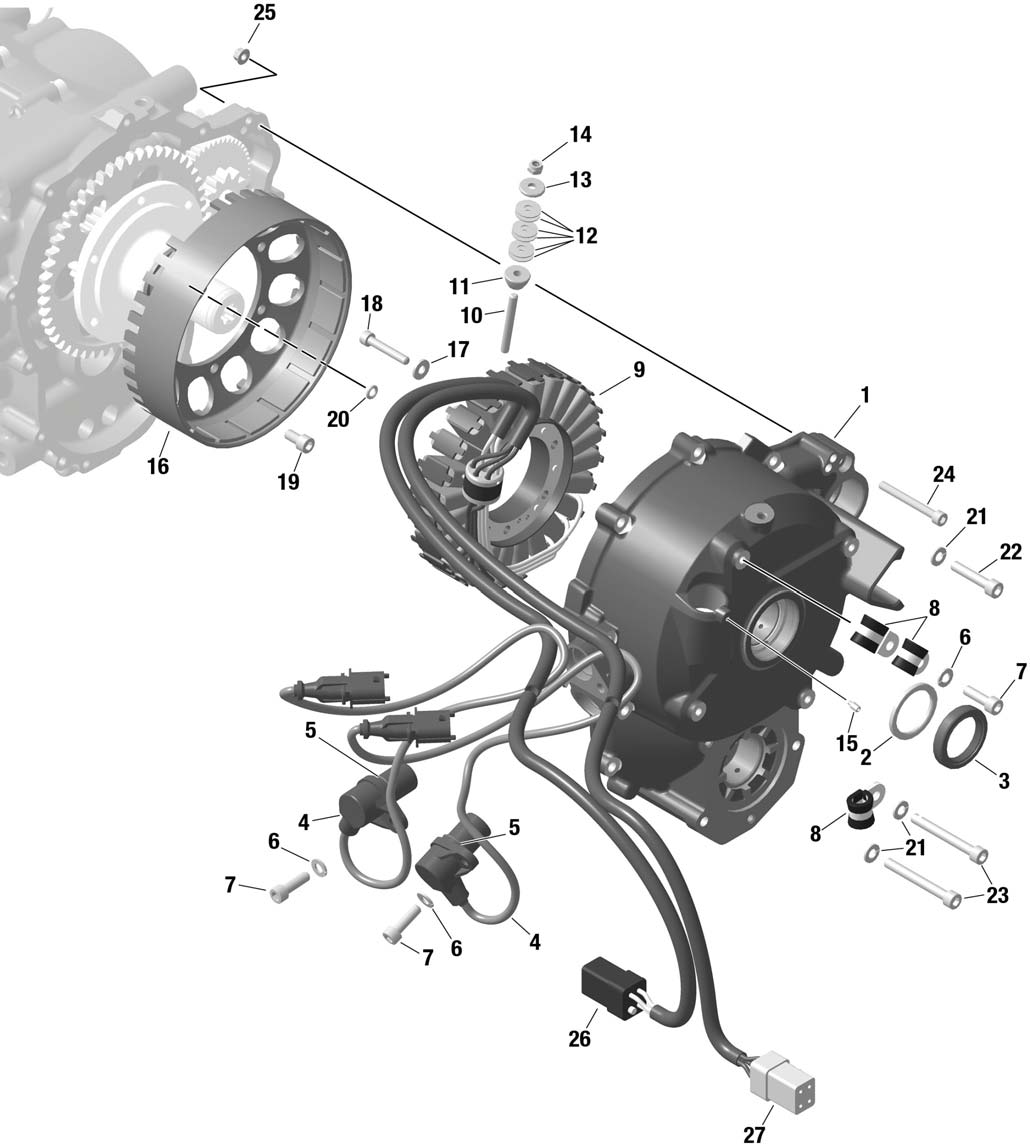

fig. 24-20-00-1

IGNITION HOUSING, STATOR, RECTIFIER REGULATOR, CRANKSHAFT POSITION SENSOR ASSY. For ROTAX 912IS

Click on Number to order Part

Fig. Part Number Description Unit/Price Add to Cart
1 912416 Ignition Housing Assy. E-starter Mount 7 Degree 1085.47 Add to Cart
2 827220 Washer 32/38/1,5 21.17 Add to Cart
3 230429 Oil Seal Gpre 28x38 X7 Fkm 50.23 Add to Cart
4-5 966572 Crankshaft Position Sensor 359.89 Add to Cart
5 431580 O-ring 17,17x1,78 Fpm 70 9.58 Add to Cart
6 945831 Lock Washer A6 Din 128 0.21 Add to Cart
7 241935 Allen Screw M6x20 0.58 Add to Cart
8 853412 Cable Clamp #8 3.08 Add to Cart
9 889562 Stator Assy. 1072.03 Add to Cart
11 947510 Distance Sleeve 46.59 Add to Cart
12 938080 Disk Spring 15x5,2x0,7 0.78 Add to Cart
13 827240 Washer 5,1/15,5/2,5 38.99 Add to Cart
14 842033 Lock Nut M5 0.21 Add to Cart
16 685070 Magneto Flywheel Assy. 680.97 Add to Cart
17 827801 Washer A 5,5 0.21 Add to Cart
18 940882 Allen Screw M5x30 0.58 Add to Cart
19 840036 Allen Screw M6x12 Din 912 0.93 Add to Cart
20 831929 O-ring 5x2 0.93 Add to Cart
21 827962 Washer 6,4 Din 125 0.23 Add to Cart
22 840888 Allen Screw M6x30 Din 912 0.58 Add to Cart
23 241762 Allen Screw M6x50 0.93 Add to Cart
24 941792 Allen Screw M5x45 1.02 Add to Cart
25 942311 Hex. Nut M5 30.33 Add to Cart
