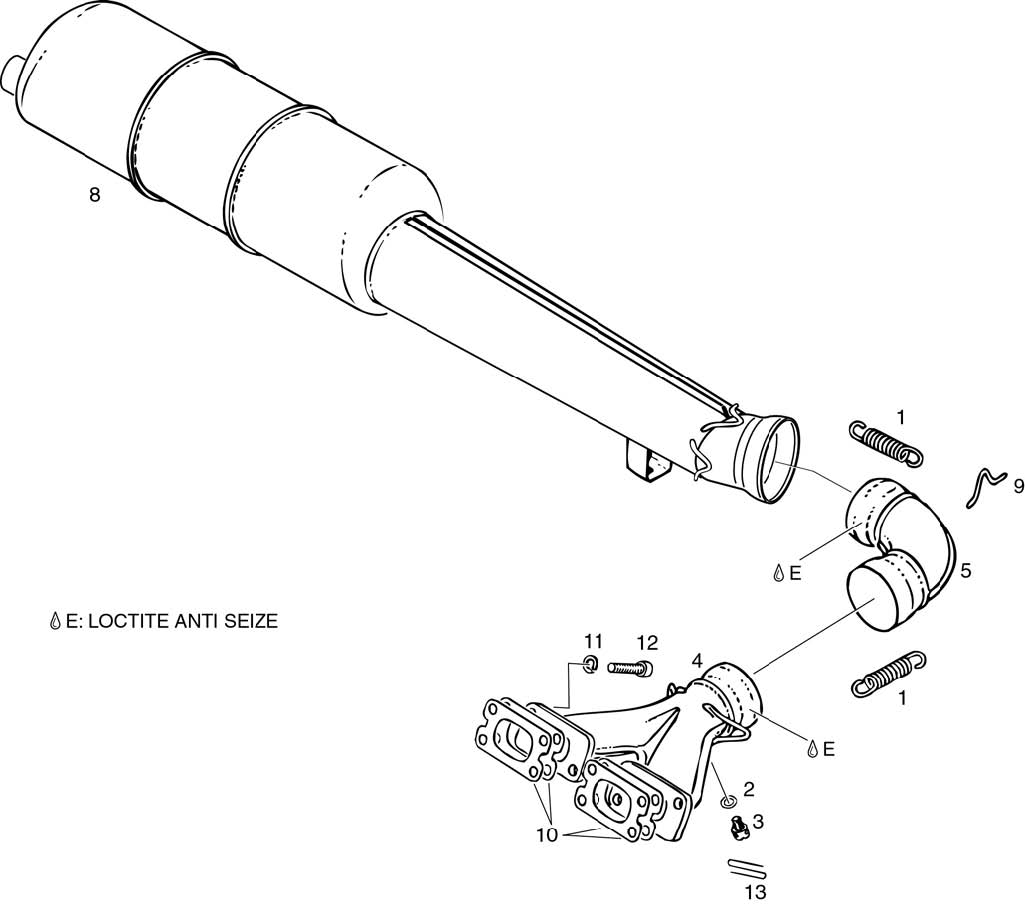

fig. 78-10-00-3
EXHAUST SYSTEM CONFIGURATION: STRAIGHT a Without hooks. b With hooks. c See SI-2ST-002. Parts For ROTAX 582UL
Click on Number to order Part
| Fig. | Part Number | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|
| 1-6 | 881631 | Exhaust Assortment Straight | 1953.48 | Add to Cart |
| 1- | 938790 | Return Spring | 8.07 | Add to Cart |
| 1- | 938790 | Return Spring | 8.07 | Add to Cart |
| 2 | 950141 | Gasket Ring A 8x13 Din 7603 | 0.26 | Add to Cart |
| 3 | 941615 | Capstan Screw M8x1x10 | 10.12 | Add to Cart |
| 4a | 973121 | Ex. Mainfold W/egt Taps,582 | 552.89 | Add to Cart |
| 4b | 973123 | Exhaust Manifold Assy. | 590.54 | Add to Cart |
| 5a | 973180 | Connecting Elbow Assy., | 495.38 | Add to Cart |
| 5b | 973182 | Connecting Elbow Assy., | 583.76 | Add to Cart |
| 6a | 973192 | Muffler Assy., | 1331.47 | Add to Cart |
| 7 | 853355 | Hook | 3.05 | Add to Cart |
| 8 | 850633 | Exhaust Gasket | 17.03 | Add to Cart |
| 9 | 945832 | Lock Washer A8 | 0.21 | Add to Cart |
| 10 | 840992 | Allen Screw M8x30 | 0.93 | Add to Cart |
| 11 | 297555 | Please Pick Up Locally | 185.68 | Add to Cart |
