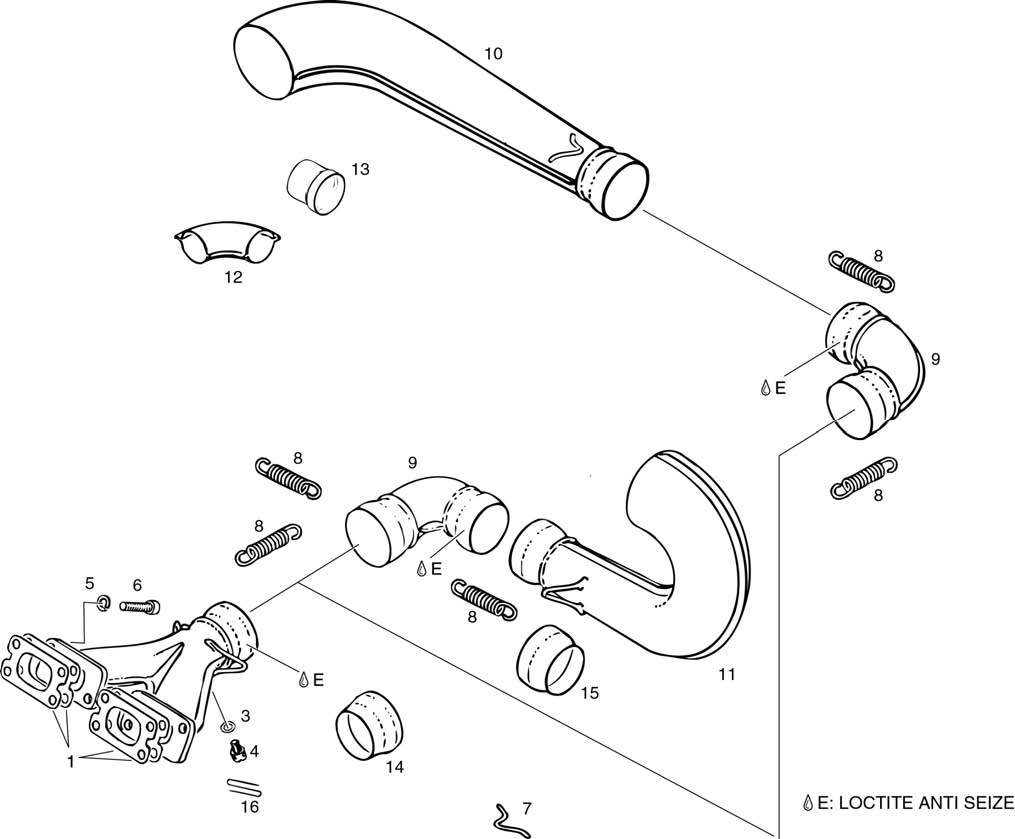

fig. 78-10-00-4
EXHAUST SYSTEMS SINGLE PARTS For ROTAX 582UL
Click on Number to order Part
| Fig. | Part Number | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|
| 1 | 850633 | Exhaust Gasket | 17.03 | Add to Cart |
| 2a | 973121 | Ex. Mainfold W/egt Taps,582 | 552.89 | Add to Cart |
| 2b | 973123 | Exhaust Manifold Assy. | 590.54 | Add to Cart |
| 3 | 950141 | Gasket Ring A 8x13 Din 7603 | 0.26 | Add to Cart |
| 4 | 941615 | Capstan Screw M8x1x10 | 10.12 | Add to Cart |
| 5 | 945832 | Lock Washer A8 | 0.21 | Add to Cart |
| 6 | 840992 | Allen Screw M8x30 | 0.93 | Add to Cart |
| 7 | 853355 | Hook | 3.05 | Add to Cart |
| 8 | 938790 | Return Spring | 8.07 | Add to Cart |
| 8 | 938790 | Return Spring | 8.07 | Add to Cart |
| 9a | 973180 | Connecting Elbow Assy., | 495.38 | Add to Cart |
| 9b | 973182 | Connecting Elbow Assy., | 583.76 | Add to Cart |
| 10b | 973546 | Inlet Cone Assy., | 318.99 | Add to Cart |
| 11a | 973544 | Inlet Cone Assy., | 262.46 | Add to Cart |
| 12 | 879920 | Outlet Elbow Assy., | 69.84 | Add to Cart |
| 13 | 978640 | Outlet Tube | 6.32 | Add to Cart |
| 14 | 878660 | Ball Joint | 46.95 | Add to Cart |
| 15 | 878666 | Ball Joint | 46.95 | Add to Cart |
| 16 | 297555 | Please Pick Up Locally | 185.68 | Add to Cart |
