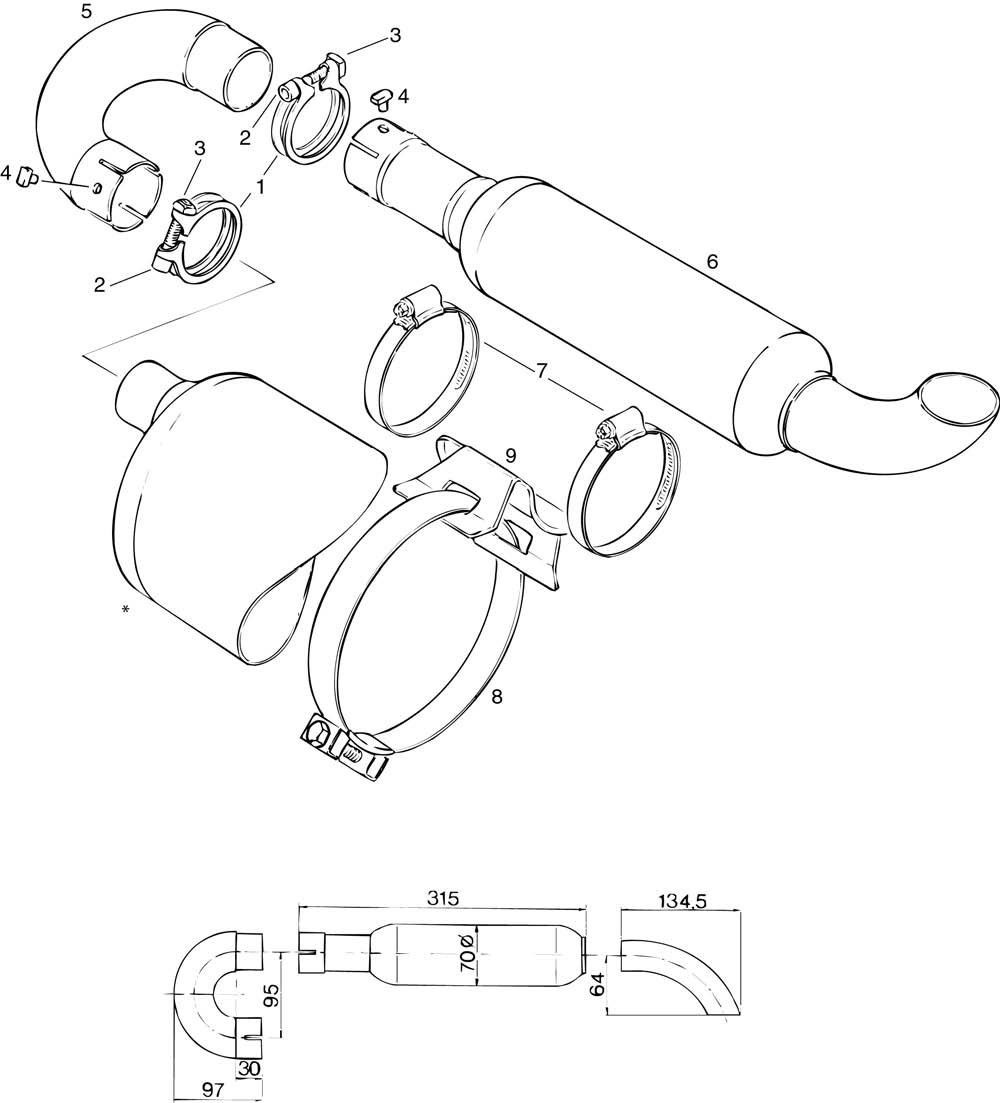

fig. 78-10-00-5
AFTER-MUFFLER ASSY, CLAMPED CONFIGURATION For ROTAX 582UL
Click on Number to order Part
| Fig. | Part Number | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|
| 1-9 | 978650 | After Muffler Kit | 1193.39 | Add to Cart |
| 1 | 953251 | Clamp 42 | 26.36 | Add to Cart |
| 2 | 241814 | Allen Screw, M6x35 | 0.84 | Add to Cart |
| 3 | 942991 | Square Nut M6 | 0.52 | Add to Cart |
| 4 | 929921 | Security Bolt | 47.84 | Add to Cart |
| 5 | 878407 | Elbow Assy., | 746.61 | Add to Cart |
| 6 | 878967 | After-muffler Assy. | 631.11 | Add to Cart |
| 7 | 851130 | Clamp 60-80 | 10.96 | Add to Cart |
| 8 | 851140 | Hose Clamp 140 | 40.25 | Add to Cart |
| 9 | 851150 | Muffler Holder | 27.79 | Add to Cart |
