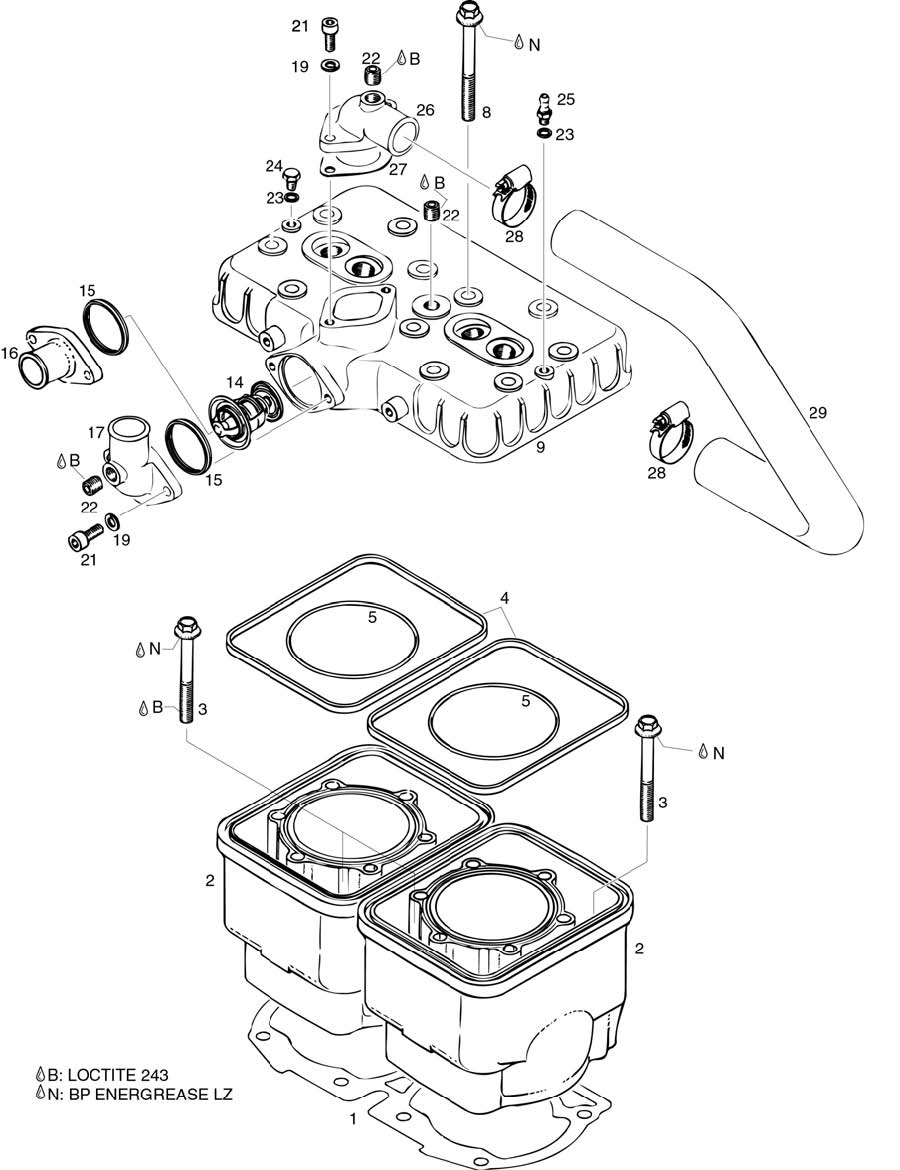

fig. 72-20-00-3
CYLINDER, CYLINDER HEAD For ROTAX 582UL
Click on Number to order Part
| Fig. | Part Number | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|
| 1 | 850775 | Double Gasket 0,5 Mm | 28.87 | Add to Cart |
| 2 | 913448-1 |
Cylinder Type A (Superceded : 913448) |
1424.83 | Add to Cart |
| 3 | 640958 |
Collar Hex.screw M8x68,5 Sw 11 (Superceded : 640952) |
5.73 | Add to Cart |
| 4 | 850040 | Rubber Ring 152,5x2,5x5 | 9.33 | Add to Cart |
| 5 | 850540 | O-ring 83-2 | 28.22 | Add to Cart |
| 8 | 841305 |
Collar Hex Screw M8x65 Sw (Superceded : 841308) |
18.89 | Add to Cart |
| 9- | 913848 |
Cylinder Head (Superceded : 913845) |
1113.53 | Add to Cart |
| 9- | 913848 | Cylinder Head | 1113.53 | Add to Cart |
| 14-15 | 922511 | Thermostat With Gasket | 103.06 | Add to Cart |
| 15 | 931270 | Thermostat Gasket | 21.15 | Add to Cart |
| 16 | 922025 | Water Outlet Socket | 38.99 | Add to Cart |
| 17 | 922061 | Bent Outlet Socket | 62.53 | Add to Cart |
| 19 | 945831 | Lock Washer A6 Din 128 | 0.17 | Add to Cart |
| 20 | 242214 |
Hex.nut M6 (Superceded : 242211) |
0.4 | Add to Cart |
| 21 | 241939 | Allen Screw M6x20 | 1.54 | Add to Cart |
| 22 | 240483 | Plug Screw 1/8-27npt | 9.47 | Add to Cart |
| 23 | 230415 | Gasket Ring A 6x10 Din 7603 | 1.66 | Add to Cart |
| 24 | 841581 | Hex. Screw M6x8 | 0.47 | Add to Cart |
| 25 | 940551 | Hose Nipple, M6 | 28.1 | Add to Cart |
| 26 | 0 | Add to Cart | ||
| 27 | 850339 |
Gasket (Superceded : 850338) |
8.55 | Add to Cart |
| 28 | 951880 | Clamp 20-32 | 7.24 | Add to Cart |
| 29 | 922521 | Molded Hose_25/180 Degree | 98.46 | Add to Cart |
