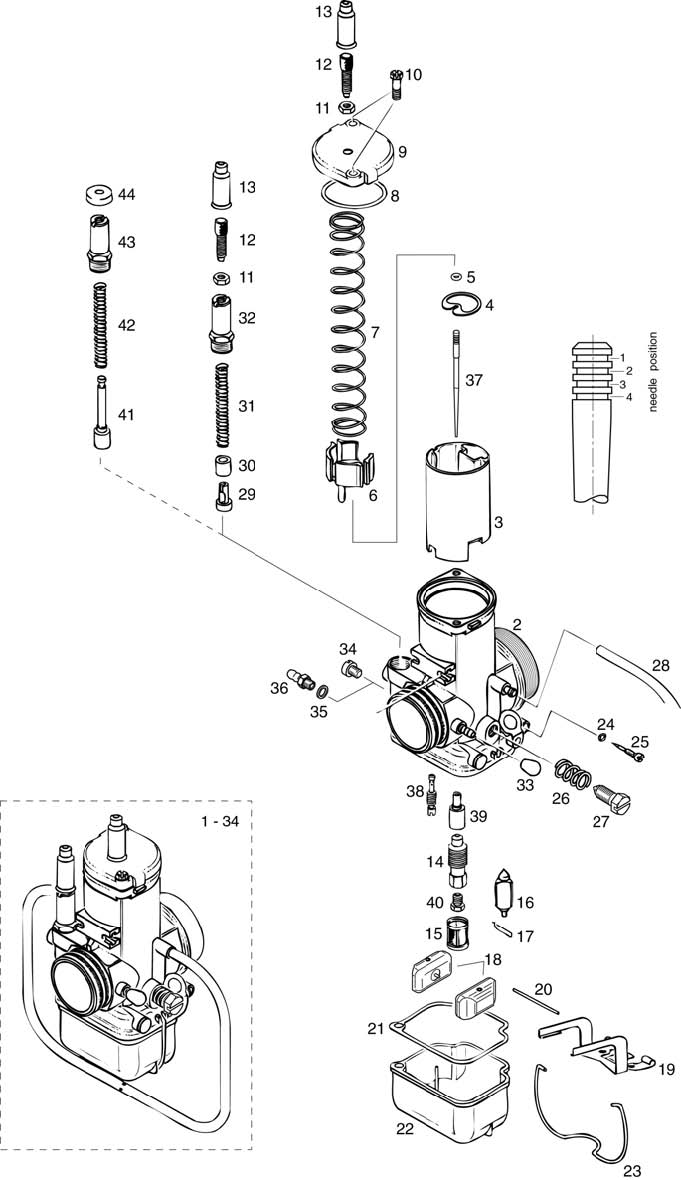

fig. 73-00-00-1
BING DOUBLE-FLOAT CARBURETOR 36 MM, MODEL 96 For ROTAX 582UL
Click on Number to order Part
| Fig. | Part Number | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|
| 1-34 | 0 | Add to Cart | ||
| 3 | 963679 | Carburetor Piston | 209.25 | Add to Cart |
| 4 | 963500 | Needle Clip | 9.56 | Add to Cart |
| 5 | 950430 | O-ring 2,5x1,5-n | 2.77 | Add to Cart |
| 6 | 827347 | Spring Cup | 18.05 | Add to Cart |
| 7 | 938655 | Carburetor Piston Spring 1,25/14 | 35.1 | Add to Cart |
| 8 | 831450 | Rubber Ring | 22.56 | Add to Cart |
| 9 | 963723 |
Cover Plate Assy (Superceded : 963721) |
279.62 | Add to Cart |
| 10 | 241430 | Hex. Screw M5x12 | 5.64 | Add to Cart |
| 11 | 942541 | Hex. Nut M6x0,75 Hight 3 Mm | 2.38 | Add to Cart |
| 12 | 241440 | Adjustment Screw M6x0,75 | 5.8 | Add to Cart |
| 13 | 260370 | Rubber Grommet | 4.14 | Add to Cart |
| 14 | 963700 | Mixing Tube | 28.71 | Add to Cart |
| 15 | 261625 | Sleeve | 22.56 | Add to Cart |
| 16 | 261704 | Float Needle Valve W. Viton Tip | 46.8 | Add to Cart |
| 17 | 261710 | Float Needle Clip | 3.96 | Add to Cart |
| 18 | 861189 | Floats Qty 2 | 100.98 | Add to Cart |
| 19 | 861192 | Float Bracket | 17.01 | Add to Cart |
| 20 | 929702 | Pin | 5.67 | Add to Cart |
| 21 | 830722 | Gasket | 43.2 | Add to Cart |
| 22 | 261013 | Float Chamber Assy., | 127.47 | Add to Cart |
| 23 | 963180 | Spring Clip | 21.6 | Add to Cart |
| 24 | 831713 | O-ring Din 3771-3,2x1,8 | 3.67 | Add to Cart |
| 25 | 963155 | Air Regulating Screw | 15.65 | Add to Cart |
| 26 | 938640 | Spring | 4.04 | Add to Cart |
| 27 | 963167 | Adjustment Screw | 22.54 | Add to Cart |
| 28 | 861940 | Air Vent Line | 40.5 | Add to Cart |
| 29 | 963740 | Choke Piston | 40.5 | Add to Cart |
| 30 | 268850 | Sleeve | 4.77 | Add to Cart |
| 31 | 661050 | Compression Spring | 24.3 | Add to Cart |
| 32 | 963750 | Choke Housing | 86.49 | Add to Cart |
| 33 | 860610 | Rubber Cap | 7.05 | Add to Cart |
| 34 | 640220 | Slotted Head Screw M6x5 | 22.56 | Add to Cart |
| 35 | 230415 | Gasket Ring A 6x10 Din 7603 | 1.66 | Add to Cart |
| 36 | 940551 | Hose Nipple, M6 | 28.1 | Add to Cart |
| 37- | 963718 | Jet Needle 15k2 | 28.8 | Add to Cart |
| 37- | 961043 | Jet Needle 11g2 | 32.4 | Add to Cart |
| 38- | 963147 | Idle Jet 55 | 54 | Add to Cart |
| 39- | 963691 | Needle Jet 2,68 | 46.8 | Add to Cart |
| 39- | 963697 | Needle Jet 2,72 | 46.8 | Add to Cart |
| 40- | 268982 | Main Jet 145 | 18.9 | Add to Cart |
| 40- | 268986 | Main Jet 165 | 18.9 | Add to Cart |
| 41-48 | 995667 | Hand Lever Choke Set | 136.7 | Add to Cart |
| 41 | 268847 | Choke Piston With Gasket | 33.48 | Add to Cart |
| 42 | 239730 | Compression Spring | 4.89 | Add to Cart |
| 43 | 261770 | Choke Housing | 114.6 | Add to Cart |
| 44 | 260490 | Rubber Cap | 6.86 | Add to Cart |
