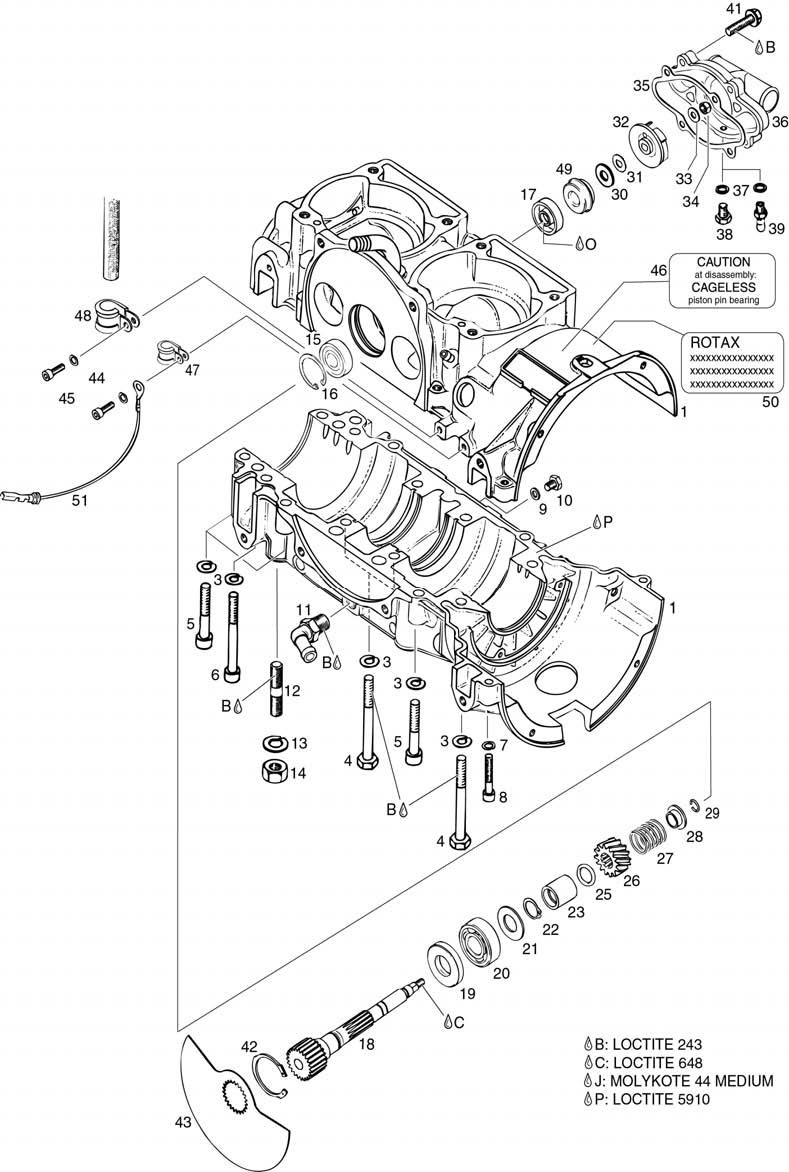

fig. 72-20-00-1
CRANKCASE, ROTARY VALVE DRIVE, WATER PUMP For ROTAX 582UL
Click on Number to order Part
| Fig. | Part Number | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|
| 1-12 | 888471 | Crankcase-assy. | 878.11 | Add to Cart |
| 1-29,42 | 888476 | Crankcase-assy. With Rotary Valve Gear | 1341.61 | Add to Cart |
| 3 | 945832 | Lock Washer A8 | 0.21 | Add to Cart |
| 4 | 841302 | Hex. Screw M8x65 | 1.72 | Add to Cart |
| 5 | 841562 | Allen Screw M8 X 45 | 1.14 | Add to Cart |
| 6 | 841832 | Allen Screw M8x75 | 1.93 | Add to Cart |
| 7 | 945831 | Lock Washer A6 Din 128 | 0.21 | Add to Cart |
| 8 | 241814 | Allen Screw, M6x35 | 0.78 | Add to Cart |
| 9 | 230415 | Gasket Ring A 6x10 Din 7603 | 0.18 | Add to Cart |
| 10 | 240772 | Hex.screw M6x10 | 0.37 | Add to Cart |
| 11 | 922242 | Angular Tube | 34.3 | Add to Cart |
| 12 | 940190 | Stud M10x29/20 | 2.87 | Add to Cart |
| 13 | 945833 | Lock Washer A10 | 0.37 | Add to Cart |
| 14 | 242092 | Hex.nut M10 | 0.42 | Add to Cart |
| 15 | 932797 | B. Bearing 6201-z, 12-32-10 | 13.91 | Add to Cart |
| 16 | 245420 | Retaining Ring 32x1,2 | 1.32 | Add to Cart |
| 17 | 850711 | Oil Seal 10x30x8 | 4.58 | Add to Cart |
| 18 | 837250 | Rotary Shaft 582/99 | 401.14 | Add to Cart |
| 19 | 930580 | Oil Seal 20x40x7 | 5.43 | Add to Cart |
| 20 | 932032 | Ball Bear. 6203 Tvh C3,17-40-12 | 23.34 | Add to Cart |
| 21 | 227439 | Shim 17,2/32,5/1,5 | 5.78 | Add to Cart |
| 22 | 845450 | Retaining Ring 17x1 | 0.37 | Add to Cart |
| 23 | 847282 | Spacer | 23.72 | Add to Cart |
| 25 | 831500 | O-ring 14-3 | 0.21 | Add to Cart |
| 26 | 935736 | Rotary Valve Gear 14 T. | 56.13 | Add to Cart |
| 27 | 938810 | Compression Spring 25,1 Mm | 3.64 | Add to Cart |
| 28 | 827430 | Spring Holding Cup | 7.26 | Add to Cart |
| 29 | 845160 | Circlip 12 | 0.78 | Add to Cart |
| 30 | 227945 | Thrust Washer 8,1/15/0,5 | 0.58 | Add to Cart |
| 31 | 227155 | Friction Washer | 20.55 | Add to Cart |
| 32 | 922036 | Impeller 582/618 | 4.79 | Add to Cart |
| 33 | 244211 | Washer 6,4 Din 134 | 0.21 | Add to Cart |
| 34 | 842042 | Lock Nut M6 | 0.42 | Add to Cart |
| 35 | 831616 | Impeller Gasket | 5.08 | Add to Cart |
| 36 | 922503 | Water Pump Housing | 401.76 | Add to Cart |
| 37 | 230415 | Gasket Ring A 6x10 Din 7603 | 0.18 | Add to Cart |
| 38 | 841581 | Hex. Screw M6x8 | 0.21 | Add to Cart |
| 39 | 940551 | Hose Nipple, M6 | 50.65 | Add to Cart |
| 41 | 240035 | Hex Screw M6x25 | 3.43 | Add to Cart |
| 42 | 945880 | Retaining Ring 40x1,75 | 2.22 | Add to Cart |
| 43 | 924504 | Rotary Valve 132 Degr., | 32.22 | Add to Cart |
| 44 | 945830 | Lock Washer A5 | 0.21 | Add to Cart |
| 45 | 840514 | Allen Screw M5x16 | 0.21 | Add to Cart |
| 46 | 897280 | "cageless"-label | 0.18 | Add to Cart |
| 47 | 851111 | Cable Clamp 8/m5 | 33.45 | Add to Cart |
| 48 | 851113 | Clamp 18/m5 | 15.2 | Add to Cart |
| 49 | 650370 | Rotary Seal | 33.79 | Add to Cart |
| 50 | 897501 | Red Warning Label | 5.6 | Add to Cart |
