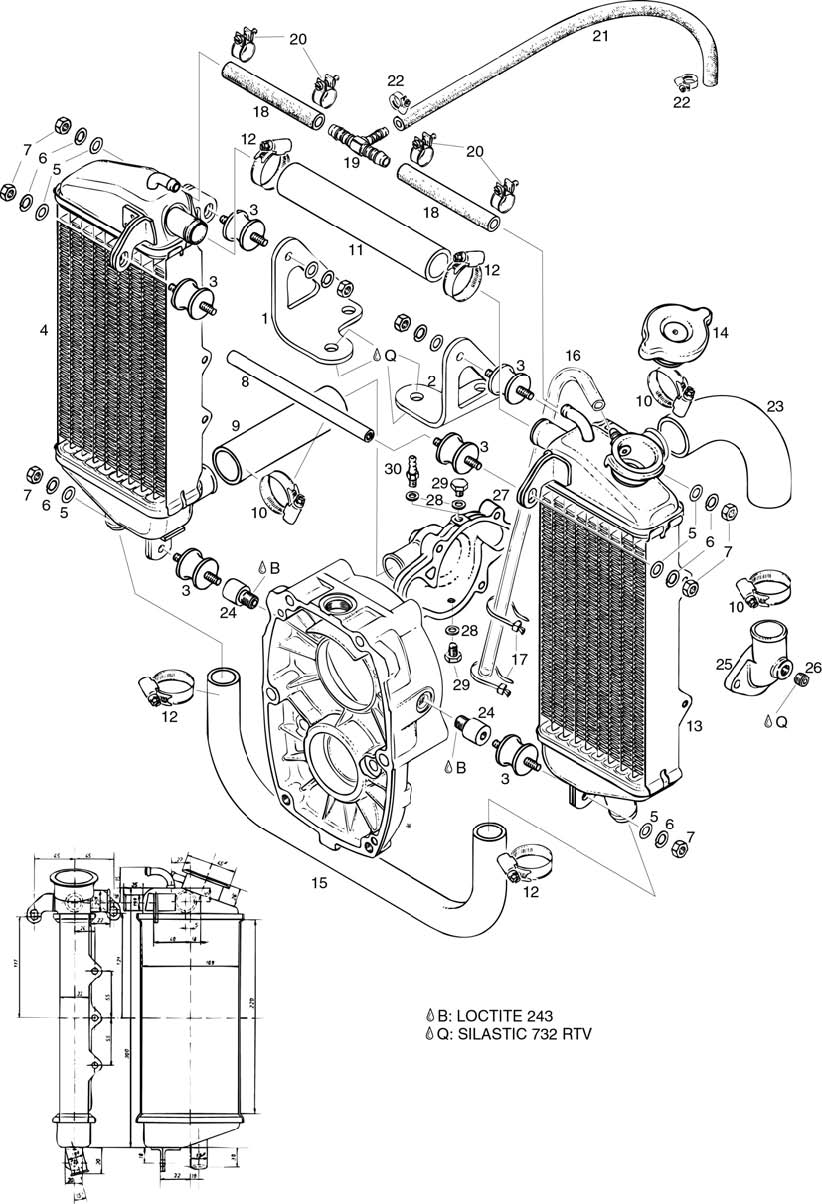

fig. 75-20-00-1
2-PIECE RADIATOR SET (LOW CONFIGURATION) For ROTAX 582UL
Click on Number to order Part
| Fig. | Part Number | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|
| 1-23 | 881433 | Dual Radiator Set | 1027.45 | Add to Cart |
| 1 | 851120 | Radiator Bracket Right, Short | 7.6 | Add to Cart |
| 2 | 851125 | Radiator Bracket Left, Short | 8.15 | Add to Cart |
| 3 | 260657 | Rubber Buffer 25x20xm6 | 13.91 | Add to Cart |
| 5 | 244211 | Washer 6,4 Din 134 | 0.21 | Add to Cart |
| 6 | 945831 | Lock Washer A6 Din 128 | 0.21 | Add to Cart |
| 7 | 242214 | Hex.nut M6 | 0.23 | Add to Cart |
| 8 | 847600 | Distance Tube, 141 Mm | 145.88 | Add to Cart |
| 9 | 922117 | Connecting Hose 110 Mm | 12.83 | Add to Cart |
| 10 | 951880 | Clamp 20-32 | 3.8 | Add to Cart |
| 11 | 922124 | Connecting Hose 150 Mm | 19.34 | Add to Cart |
| 12 | 951870 | Clamp 16-25 | 3.64 | Add to Cart |
| 14 | 922076 | Radiator Cap W/ Gasket, 0.9 Bar | 40.12 | Add to Cart |
| 15 | 922193 | Water Tube | 18.46 | Add to Cart |
| 16 | 974530 | Fuel Hose A5x8 | 17.95 | Add to Cart |
| 17 | 866710 | Clamp 142x2,5 Mm | 0.07 | Add to Cart |
| 18 | 956260 | Low Pressure Hose Gc 7,5 X 12,5 | 40.03 | Add to Cart |
| 19 | 974839 | Reduction T-peace 8-6-8 | 13.58 | Add to Cart |
| 20 | 951241 | Screw Hose Clamp 12 | 2.29 | Add to Cart |
| 21 | 860300 | Low Pressure Hose, Per Meter | 53.73 | Add to Cart |
| 22 | 951898 | Clamp 7-11 | 5.78 | Add to Cart |
| 23 | 922113 | Bent Hose | 71.37 | Add to Cart |
| 24 | 847730 | Spacer 6,5/18/9 | 34.3 | Add to Cart |
| 25 | 922061 | Bent Outlet Socket | 46.26 | Add to Cart |
| 26 | 240481 | Plug Screw 1/8-27npt | 7.26 | Add to Cart |
| 27 | 922503 | Water Pump Housing | 401.76 | Add to Cart |
| 28 | 230415 | Gasket Ring A 6x10 Din 7603 | 0.18 | Add to Cart |
| 29 | 841581 | Hex. Screw M6x8 | 0.21 | Add to Cart |
| 30 | 940551 | Hose Nipple, M6 | 50.65 | Add to Cart |
