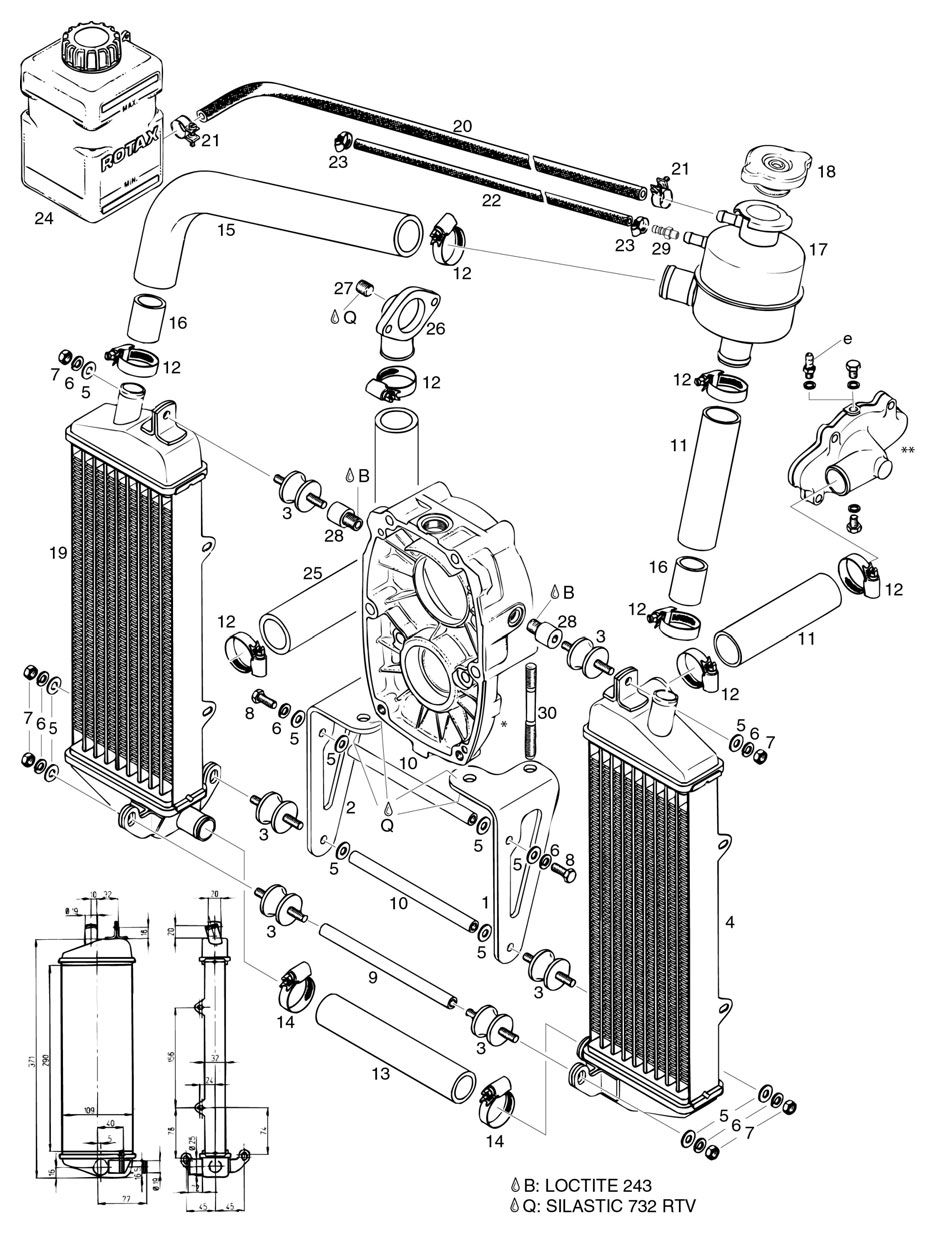

fig. 75-20-00-3
PIECE RADIATOR SET FOR INVERTED ENGINE INSTALLATION For ROTAX 582UL
Click on Number to order Part
| Fig. | Part Number | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|
| 1 | 851122 | Radiator Bracket Right, Long | 75.93 | Add to Cart |
| 2 | 851127 | Radiator Bracket Left, Long | 75.93 | Add to Cart |
| 3 | 260657 | Rubber Buffer 25x20xm6 | 30.29 | Add to Cart |
| 5 | 244211 | Washer 6,4 Din 134 | 0.17 | Add to Cart |
| 6 | 945831 | Lock Washer A6 Din 128 | 0.17 | Add to Cart |
| 7 | 242214 |
Hex.nut M6 (Superceded : 242211) |
0.4 | Add to Cart |
| 8 | 241187 | Hex.screw M6x16 | 0.42 | Add to Cart |
| 9 | 847600 | Distance Tube, 141 Mm | 94.63 | Add to Cart |
| 10 | 847605 | Distance Bolt, 131 Mm | 52.36 | Add to Cart |
| 11 | 922117 | Connecting Hose 110 Mm | 9.71 | Add to Cart |
| 12 | 951880 | Clamp 20-32 | 7.24 | Add to Cart |
| 13 | 922124 | Connecting Hose 150 Mm | 22.95 | Add to Cart |
| 14 | 951870 | Clamp 16-25 | 6.86 | Add to Cart |
| 15 | 922111 | Bend Hose | 72.8 | Add to Cart |
| 16 | 222100 | Adapter Hose 30 Mm | 11.66 | Add to Cart |
| 17-18 | 622052 |
Expansion Tank Assy. 90 Degr., (Superceded : 922313) |
191.84 | Add to Cart |
| 18 | 922072 | Radiator Cap W/ Gasket, 1.2 Bar | 83.58 | Add to Cart |
| 19 | 995918 | Radiator Without Filler Cap | 639.14 | Add to Cart |
| 20 | 956260 | Low Pressure Hose Gc 7,5 X 12,5 | 55.08 | Add to Cart |
| 21 | 951241 | Screw Hose Clamp 12 | 5.22 | Add to Cart |
| 22 | 860300 | Low Pressure Hose, Per Meter | 63.27 | Add to Cart |
| 23 | 951898 | Clamp 7-11 | 9.78 | Add to Cart |
| 24 | 922327 | Overflow Bottle With Cap | 78.41 | Add to Cart |
| 25 | 922382 | Bent Hose 25/90 Degr. | 83.67 | Add to Cart |
| 26 | 922061 | Bent Outlet Socket | 62.53 | Add to Cart |
| 27 | 240481 | Plug Screw 1/8-27npt | 6.93 | Add to Cart |
| 28 | 847730 | Spacer 6,5/18/9 | 22 | Add to Cart |
| 29 | 940551 | Hose Nipple, M6 | 28.1 | Add to Cart |
| 30 | 240490 | Stud M8x84 | 12.29 | Add to Cart |
| 31 | 922503 | Water Pump Housing | 291.03 | Add to Cart |
| 32 | 230415 | Gasket Ring A 6x10 Din 7603 | 1.66 | Add to Cart |
| 33 | 841581 | Hex. Screw M6x8 | 0.47 | Add to Cart |
