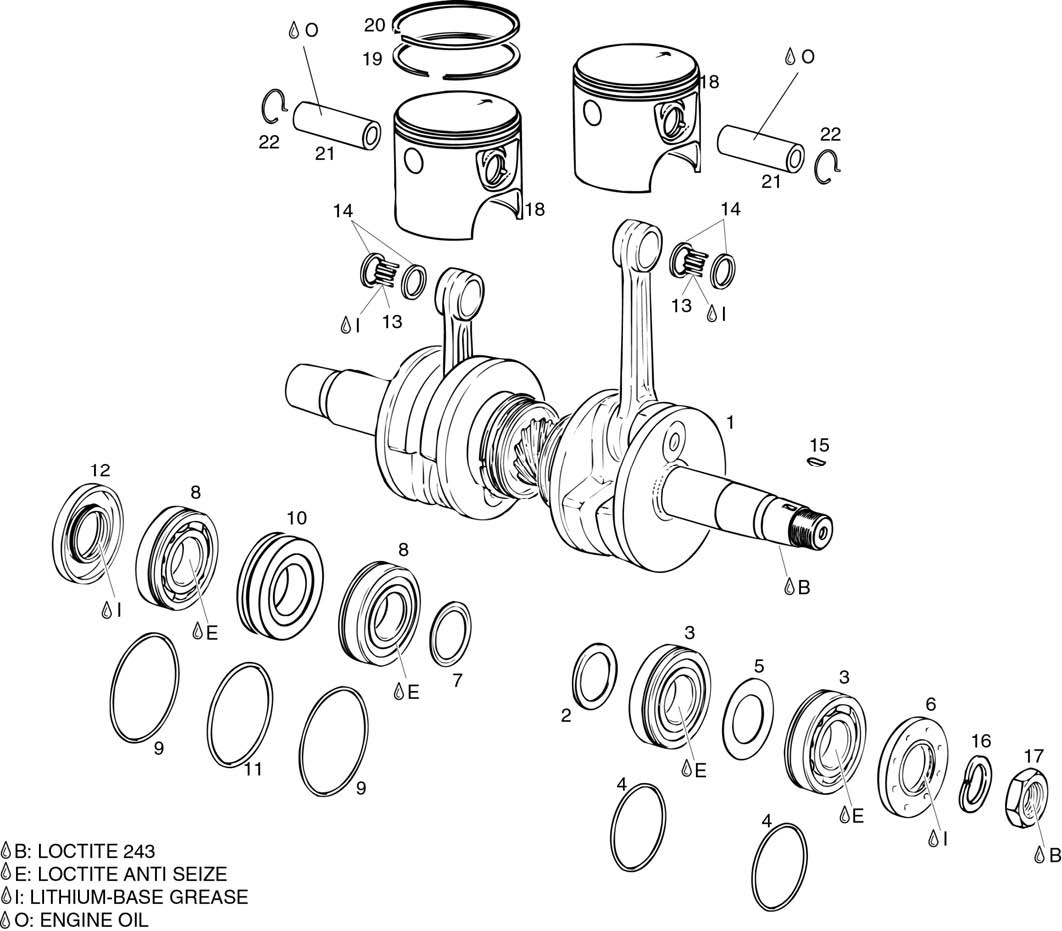

fig. 72-20-00-2
CRANKSHAFT, BEARINGS, PISTON For ROTAX 582UL
Click on Number to order Part
Your cart is Empty
| Fig. | Part Number | Description | Unit/Price | Add to Cart |
|---|
Fig. | Part Number | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|
| 1-15 | 887052 | Crankshaft Assy. 582 | 5351.68 | Add to Cart |
| 2 | 827441 | Spacer Ring 30,5/42/2 | 19.72 | Add to Cart |
| 3 | 832212 | B. Bearing 6206 N Tvh, 30-62-16 | 301.39 | Add to Cart |
| 4 | 830355 | O-ring 49,2-1,8 | 0.39 | Add to Cart |
| 5 | 827715 | Stop Shim 30,4/51/1 | 4.98 | Add to Cart |
| 6 | 830748 | Oil Seal 30x62x7/7,5 | 9.6 | Add to Cart |
| 7 | 827760 | Distance Ring 35,5/47/2 | 8.01 | Add to Cart |
| 8 | 632743 | B. Bearing 6207n Tnh C3 35-72-17 | 287.42 | Add to Cart |
| 9 | 250165 | O-ring 64-2 | 0.58 | Add to Cart |
| 10 | 830298 | Labyrinth Sleeve | 155.61 | Add to Cart |
| 11 | 830370 | O-ring 63-2,5 | 0.58 | Add to Cart |
| 12 | 831950 | Oil Seal 35x72x7/8,5 | 12.48 | Add to Cart |
| 13-14 | 832320 | Cagel. Needle Bearing 18x22x23 | 31.35 | Add to Cart |
| 14 | 827465 | Thrust Washer 18/21,7/2,5 | 27.43 | Add to Cart |
| 15 | 246055 | Woodruff Key 3x3,7 Din 6888 | 1.14 | Add to Cart |
| 16 | 945759 | Lock Washer 22 | 1.14 | Add to Cart |
| 17 | 842239 | Hex. Nut M22x1,5 | 5.26 | Add to Cart |
| 18-20 | 888591-1 | Piston, Ist Over 76.19mm Red Dot | 339.38 | Add to Cart |
| 18-20 | 888592-1 | Piston, 2nd Over-76.44mm Red Dot | 339.38 | Add to Cart |
| 19e | 215200 | Rectangular Ring 76,00 Mm | 66.53 | Add to Cart |
| 19f | 215201 | Rectangular Ring 76,25 Mm | 55.45 | Add to Cart |
| 19g | 215202 | Rectangular Ring 76,5 Mm | 54.22 | Add to Cart |
| 20e | 915820 | Semi-trapez Ring 76,0 Mm | 101.68 | Add to Cart |
| 20f | 915821 | Semi-trapez Ring 76,25 Mm | 82.55 | Add to Cart |
| 20g | 915822 | Semi-trapez Ring 76,5 Mm | 82.55 | Add to Cart |
| 21 | 916136 | Piston Pin 18x11x53,7 | 19.17 | Add to Cart |
| 22 | 845540 | Mono Hook Circlip | 2.29 | Add to Cart |
Showing 1 to 27 of 27 entries
