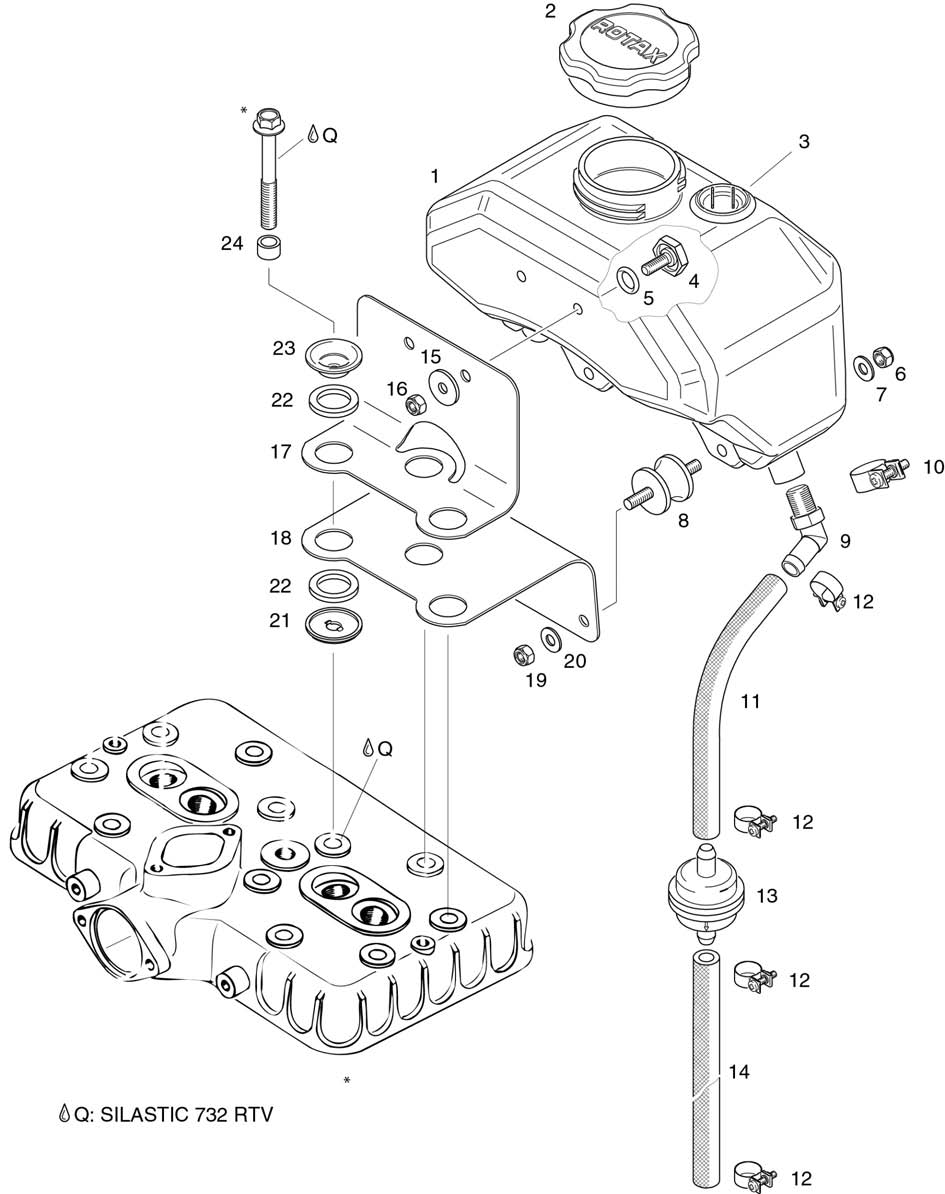

fig. 79-20-00-1
OIL TANK ASSY For ROTAX 582UL
Click on Number to order Part
| Fig. | Part Number | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|
| 1-24 | 881465 | Oil Tank W/bracket | 480.71 | Add to Cart |
| 1-16 | 881460 | Oil Reservoir For Oil Injectio | 422.82 | Add to Cart |
| 2 | 874106 | Tank Cap Assy. | 62.71 | Add to Cart |
| 3 | 956360 | Oil Level Indicator | 47.11 | Add to Cart |
| 4 | 840160 | Tightening Screw M6 | 94.59 | Add to Cart |
| 5 | 430020 | O-ring 9,3x2,4 | 0.37 | Add to Cart |
| 6 | 842042 | Lock Nut M6 | 0.42 | Add to Cart |
| 7 | 244211 | Washer 6,4 Din 134 | 0.21 | Add to Cart |
| 8 | 260657 | Rubber Buffer 25x20xm6 | 13.91 | Add to Cart |
| 9 | 922242 | Angular Tube | 34.3 | Add to Cart |
| 10 | 853515 | Clamp 16/9 | 2.87 | Add to Cart |
| 11 | 956231 | Oil Line 140 Mm | 15.94 | Add to Cart |
| 12 | 951260 | Clamp 14 | 2.5 | Add to Cart |
| 13 | 956330 | Oil Filter | 18.61 | Add to Cart |
| 14 | 956233 | Oil Line 450 Mm | 30.67 | Add to Cart |
| 15 | 227900 | Washer 6,2/20/2 | 0.93 | Add to Cart |
| 16 | 842042 | Lock Nut M6 | 0.42 | Add to Cart |
| 17 | 851230 | Oil Tank Bracket Upper Half | 37.1 | Add to Cart |
| 18 | 851235 | Oiltank Bracket Lower Half | 80.26 | Add to Cart |
| 19 | 842042 | Lock Nut M6 | 0.42 | Add to Cart |
| 20 | 244211 | Washer 6,4 Din 134 | 0.21 | Add to Cart |
| 21 | 944092 | Shim 8,2 | 50.94 | Add to Cart |
| 22 | 960865 | Rubber Washer 18/26/3 | 1.35 | Add to Cart |
| 23 | 827817 | Cup Washer | 5.97 | Add to Cart |
| 24 | 847796 | Spacer 8,4/12/7,5 | 13.59 | Add to Cart |
