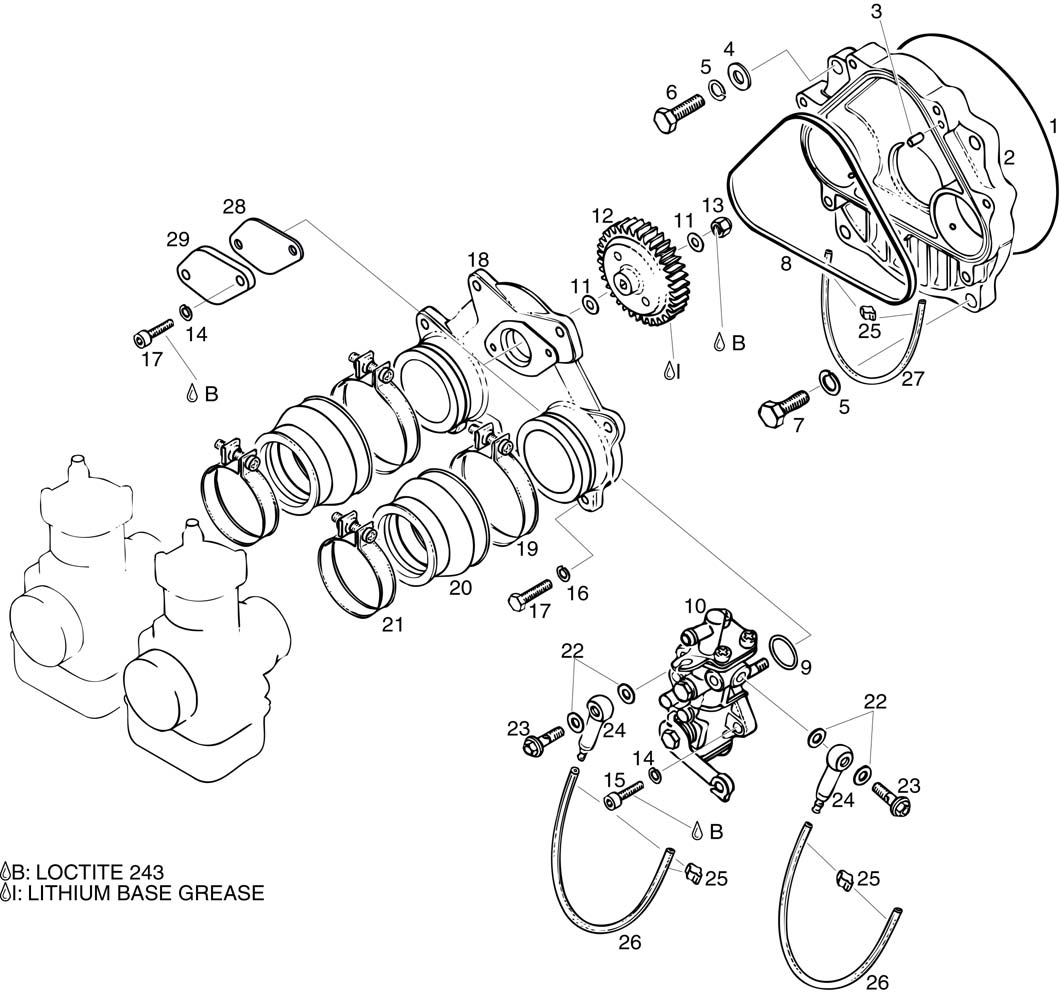

fig. 79-20-00-2
ROTARY VALVE COVER, OIL PUMP DRIVE, OIL PUMP For ROTAX 582UL
Click on Number to order Part
| Fig. | Part Number | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|
| 1 | 831360 | O-ring 132-1,7 | 1.35 | Add to Cart |
| 3 | 929560 | Dowel Tube 2x8 | 3.67 | Add to Cart |
| 4 | 250315 | Washer 8,4 | 0.21 | Add to Cart |
| 5 | 945832 | Lock Washer A8 | 0.21 | Add to Cart |
| 6 | 240277 | Hex. Screw M8x25 | 0.58 | Add to Cart |
| 7 | 940592 | Hex.screw M8x20 | 0.93 | Add to Cart |
| 8 | 831700 | Rubber Ring 126x1,5x3,5 | 7.26 | Add to Cart |
| 9 | 230370 | O-ring 18-1,3 | 0.21 | Add to Cart |
| 10 | 995527 | Oil Pump Assy., | 224.54 | Add to Cart |
| 11 | 927945 | Washer 6,2/12/1 | 0.21 | Add to Cart |
| 12 | 935940 | Oil Pump Gear 44 T., | 5.23 | Add to Cart |
| 13 | 842042 | Lock Nut M6 | 0.42 | Add to Cart |
| 14 | 945830 | Lock Washer A5 | 0.21 | Add to Cart |
| 15 | 840514 | Allen Screw M5x16 | 0.21 | Add to Cart |
| 16 | 945831 | Lock Washer A6 Din 128 | 0.21 | Add to Cart |
| 17 | 940562 | Hex.screw M6x20 | 0.21 | Add to Cart |
| 18 | 910320 | Pump Mounting Flange | 68.22 | Add to Cart |
| 19 | 851065 | Clamp 62 | 6.32 | Add to Cart |
| 20 | 867696 | Carburetor Socket | 18.63 | Add to Cart |
| 21 | 951405 | Hose Clamp 53 | 6.51 | Add to Cart |
| 22 | 227500 | Gasket Ring 6,2/12/1 | 0.07 | Add to Cart |
| 23 | 241830 | Banjo Bolt M6x16 | 2.5 | Add to Cart |
| 24 | 956010 | Check Valve Assy., | 8.88 | Add to Cart |
| 25 | 853840 | Clamp 3-5 Mm | 2.87 | Add to Cart |
| 26-27 | 201240 | Oil Line 1 Meter Bulk 2,3+/-0,1x4,5+0,4 | 20.98 | Add to Cart |
| 26d | 201240 | Oil Line 1 Meter Bulk 2,3+/-0,1x4,5+0,4 | 20.98 | Add to Cart |
| 27e | 201240 | Oil Line 1 Meter Bulk 2,3+/-0,1x4,5+0,4 | 20.98 | Add to Cart |
| 28 | 931568 | Gasket | 4.01 | Add to Cart |
| 29 | 810827 | Cover Plate | 11.4 | Add to Cart |
