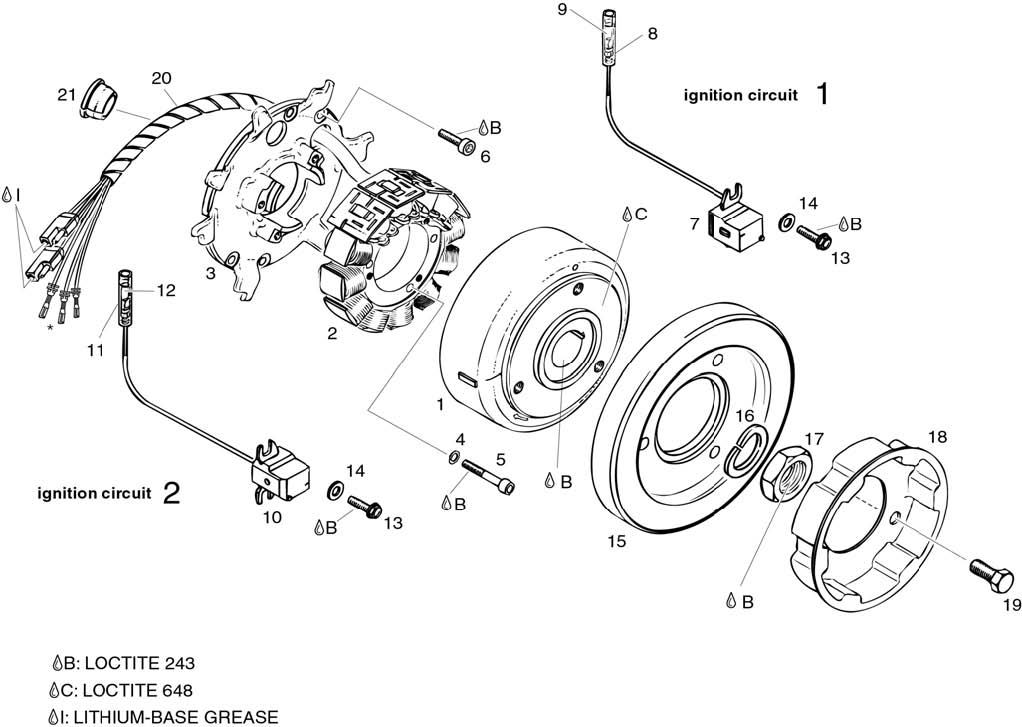

fig. 24-20-00-3
DUCATI MAGNETO-GENERATOR 12 V170W, STARTING PULLEY For ROTAX 582UL
Click on Number to order Part
| Fig. | Part Number | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|
| 1 | 996826 | Trigger Wheel Assy | 353.19 | Add to Cart |
| 2 | 996849 | Stator, 582/99, 12w150 | 451.7 | Add to Cart |
| 3 | 966207 | Stator Plate | 65.82 | Add to Cart |
| 4 | 945830 | Lock Washer A5 | 0.21 | Add to Cart |
| 5 | 940880 | Allen Screw M5x30 | 0.37 | Add to Cart |
| 6 | 641521 | Allen Screw M5x16-t25 Din 6912-mk | 1.51 | Add to Cart |
| 7-9 | 965769 | Pick Up Assy. | 95.72 | Add to Cart |
| 8 | 964072 | Insulation Sheath | 0.37 | Add to Cart |
| 9 | 964067 | Faston Connector 3,96 | 0.37 | Add to Cart |
| 10-12 | 965761 | Pick-up Assy. | 87.81 | Add to Cart |
| 11 | 964072 | Insulation Sheath | 0.37 | Add to Cart |
| 12 | 964067 | Faston Connector 3,96 | 0.37 | Add to Cart |
| 13 | 941926 | Taptite Screw M5x16 | 0.78 | Add to Cart |
| 14 | 827801 | Washer A 5,5 | 0.21 | Add to Cart |
| 15 | 965499 | Hydro Damper Assy., | 590.35 | Add to Cart |
| 16 | 945759 | Lock Washer 22 | 1.14 | Add to Cart |
| 17 | 842239 | Hex. Nut M22x1,5 | 5.43 | Add to Cart |
| 18- | 852422 | Starting Pulley | 46.55 | Add to Cart |
| 18- | 852410 | Starting Pulley | 46.55 | Add to Cart |
| 18- | 852411 | No Longer Available | 46.55 | Add to Cart |
| 19 | 940592 | Hex.screw M8x20 | 0.93 | Add to Cart |
| 20 | 966060 | Spiral Hose & Band | 25.24 | Add to Cart |
| 21 | 960288 | Cable Crommet 20,5/11 | 8.15 | Add to Cart |
